Cessna T206, T207, T210 Intercooler Kit

Cessna T200 Series

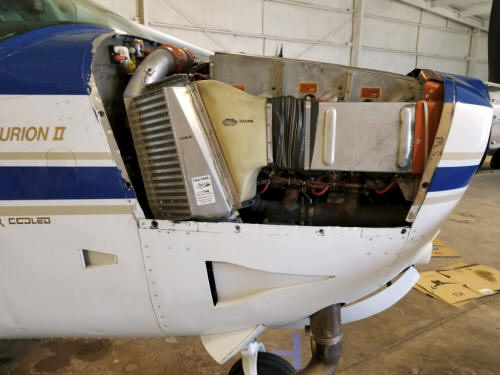

Intercooler installed on a Cessna T-210M Turbo Centurion II

I bought the Turbo-Plus intercooler kit for my T-210M late last year. The intercooler kit was installed during the time of my annual inspection. Jeff was very conscious of having the kit available and ready on schedule.

The quality of the components is excellent and the maintenance shop had no issues with the installation and adaptation of the intercooler kit to my Continental 520R engine.

Cessna T200 Series

The following advantages are readily noticeable.

1. Cooler cylinder head temperatures, at my normal cruising altitudes of 13000’-15000’.
2. At airspeeds I had noted previously, reduced manifold pressures and reduced fuel consumption are experienced.
3. Increased airspeed utilizing previous manifold settings before intercooler modification.

I am very satisfied with the results and highly recommend Turbo Plus intercooler kits.

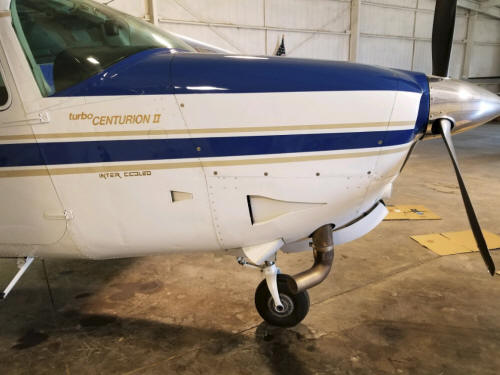

Turbo Centurion T210M  N79CH

Cessna T200 Series

Cessna T200 Series Intercooler

Cessna T200 Series

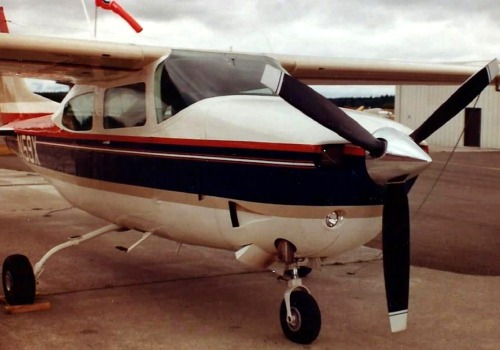

Cessna T-210

Cessna T200 Series Pic 3

Our custom aftermarket induction airbox mounts to the turbocharger and comes with our automatic alternate air door and Brackett Aero Filter.  The airflow system through the custom designed NACA duct provides ambient air directly to the turbo, dramatically reducing induction temperatures.

Cessna T200 Series Pic 4

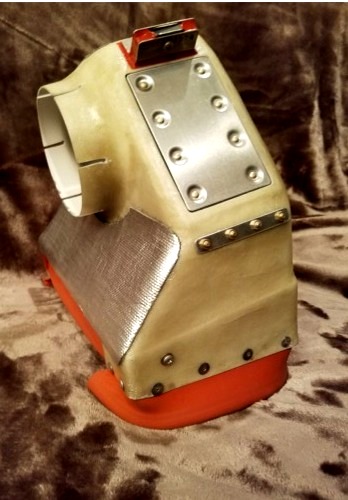

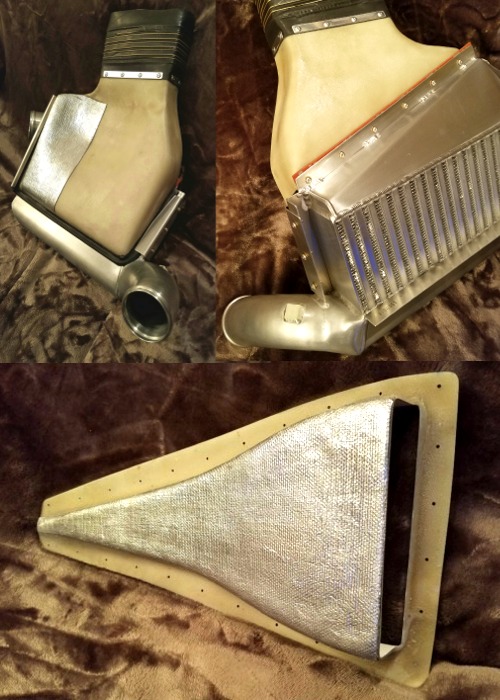

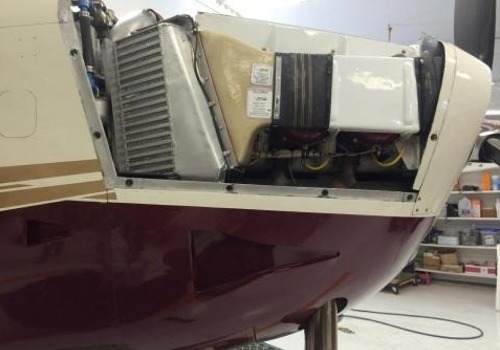

The Turboplus intercooler assembly with cooling air plenum installed. The intercooler airflow system is through the nose bowl flow divider, to the fiberglass plenum and into the intercooler core.  Inside view of NACA Duct, showing insulation.


Cessna T200 Series Pic 5

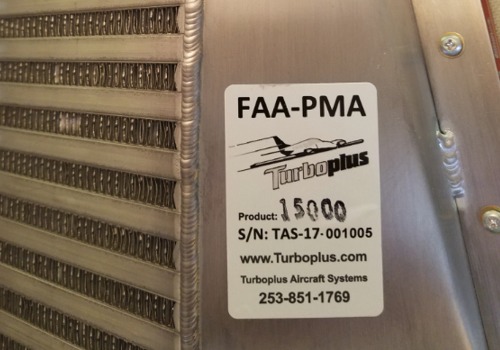

Cessna T200 Series Intercooler Core

Cessna T200 Series Pic 6

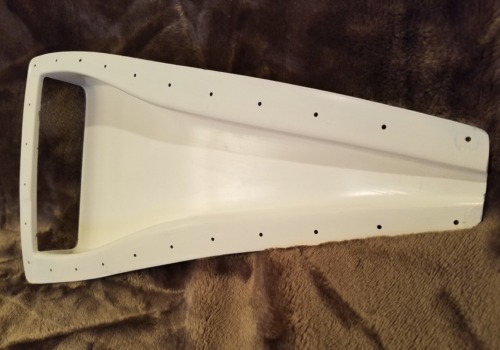

Cessna T200 Series NACA Duct


My experience about the Turboplus Intercooler STC installed on our plane:

We installed the intercooler STC on our Cessna T206G and we just did the flight test last day.  The test was amazing in term of performance and fuel burns.  We did a short flight over the runway, but we had a high rate of climb, around 1,800 ft/m, and during the cruise we were able to set 1 or 2 MP less then table, to obtain the same performance. The fuel consumption less then 1/2 Gallons/Hour compare to Cessna Table.  I definitely suggest and recommended to install this STC, very easy to install and very useful.

Best regards.
- Fabio Bernardi, January 2018


"I have a T210L with the Turboplus intercooler. The difference from other non-intercooled turbos is very noticeable - cooler CHTs (most important to me), no bootstrapping or fuel fluctuation issues at high altitude, and smooth LOP operations so I can even climb LOP at higher power settings while enjoying a smooth cool engine.  I cruise at 14gph/30"MP and see 170 kt TAS around 10-11k altitudes, more higher, which is significantly better than the POH book values, and managing the temperatures is as easy on a non-turbocharged engine.  Such a great system!"

- Peter Valchev, July 2018


The Turboplus Cessna T200 Series intercooler system

The Turboplus Cessna T206, T207 and T210 intercooler system provides ram air through their custom designed intercooler and plenum, as well as a P210 style NACA duct for their new induction system.

The NACA duct directs ambient air through the custom designed airbox (with Auto Air Door) directly into the turbocharger. The lower cowling NACA duct creates no drag. Turboplus Aircraft Systems, Inc. is the only general aviation aftermarket intercooler kit manufacturer to offer a Five-Year warranty on their intercooler system.

Turboplus Aircraft Systems, Inc. will ship your order to your home, business or any FBO shop of your choosing. Don't fly to us when we can ship to you.




Cessna T200 Series Intercooler Kit

Intercooler Benefits


  • Up to 80°C/144°F Induction Air Temp. Drop
  • Extended Engine Life
  • Lower Maintenance Costs
  • Full Take-off Power on HOT Days/High Altitude Airports
  • FUEL SAVINGS up to 15%
  • Extended Range
  • Same H.P. with Less M.P.
  • Cooler CHT and Oil Temps Allows Engine Operation Farther from Point of Detonation
  • Engine Critical Altitude Increased
  • Power Correction Chart used when flying with a Turboplus Intercooler System

Intercooler Kit


  • Intercooler with Charge Air Cooling Plenums
  • New Turboplus Induction System with Automatic Alternate Air Door
  • NACA Duct & Template
  • Engine Intercooler Gauge-3 Temps:
    1. Compressor Discharge Temp.
    2. Charge Air Temp.
    3. Differential Temp.

  • Certified Hardware
  • Custom Intercooler Hoses
  • Turboplus and FAA Documents

Price: $8,295.00


Labor Hours

Estimated 20 Hours Installation, Includes Painting

Printable Product Flyer

STC: SA2390NM Intercooler and Induction System Installation- Cessna T206, T207 and T210 series





Cessna T200 Series Pressurized Magneto Kit

Magneto Kit Benefits:


  • Reduces High Altitude Misfiring
  • Reduces Possible Engine damage due to Misfiring

Kit Includes:


  • Certified Hardware
  • New Hose Assemblies
  • Fuel Filter
  • Magneto Fittings
  • Hydraulic Fittings

Price: $895.00


  • Estimated 2 hours installation
  • Part Number:
    16000 (TSIO-520 Series)

STC: SE2393NM Pressurized Magneto System Installation


Download a copy of our ICA

It is highly recommended:
To record the critical engine altitude, oil and cylinder head temperatures and fuel flows at given power settings before the intercooler installation. After installation, another “flight test” ensures that engine and aircraft performance adhere to Turboplus Aircraft Systems, Inc. high standards. Post modification flight test data provides a direct "Before and After" comparison of the dramatic improvement in aircraft performance and engine operation. For your convenience, we supply the pre-flight and post-flight performance documents.
